رمز المنتج : VF--QCC-Q246-CU
Nominal pressure: PN4.0-16.0MPa
Nominal diameter: DN15-DN250
Operation mode: Pneumatic, electric, worm gear;
Connection method: Flange
Valve functions: shut-off, reversing, diversion, and convergence.
Component material:
Valve body material: C276 Hastelloy;
Sphere material: C276
Valve stem material: C276
Valve seat sealing ring: PTFE, RTFE (reinforced PTFE), para-polystyrene PPL, PEEK.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| المنتج | رمز المنتج | النقاء | الحجم | تواصل معنا |

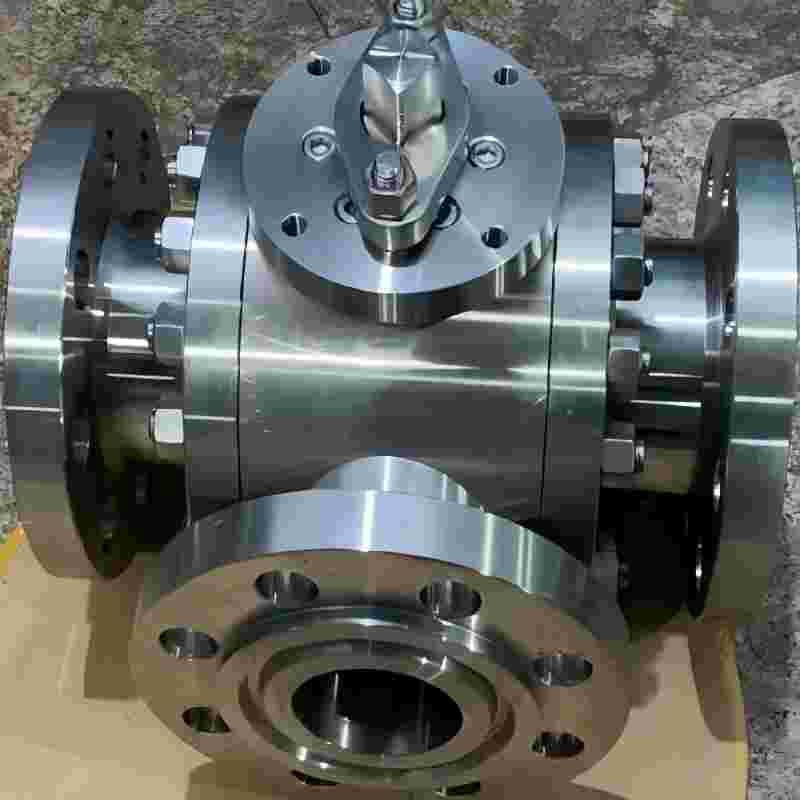

C276 high-pressure forged steel three-way ball valve, made of C276 Hastelloy, the valve body is forged, resistant to high pressure, PN40-PN160, DN15-DN250, models Q644F, Q645F, Q945F, Q944F, Q345F. Applicable media: Sodium fluoride oxide, seawater, sulfuric acid, hydrochloric acid, phosphoric acid, hydrofluoric acid, brine, high-concentration chloride ion wastewater.
The Q344F-C276 high-pressure forged steel three-way ball valve is divided into two types: L-type three-way and T-type three-way. The L-type three-way ball has two holes and is used for reversing. The T-shaped three-way sphere has three holes, and its function is to converge or divert the medium.
The L-type three-way ball valve is used for switching the flow direction of the medium and can connect two mutually perpendicular channels.
The T-type three-way ball valve features a four-seat seal and four flow combinations. It not only enables the switching of medium flow directions but also allows the three channels to be interconnected (two in and one out, combined flow or one in and two out, split flow). Additionally, it can close any one channel to connect the other two, flexibly controlling the combined flow or split flow of the medium in the pipeline.
Applicable media: Sodium fluoride oxide, seawater, sulfuric acid, hydrochloric acid, phosphoric acid, hydrofluoric acid, brine, high-concentration chloride ion wastewater.
