رمز المنتج : VF--QCC-Q213-CU
Temperature range -150 to 662°F (-101 to 350°C)
Size range NPS 1-56 (DN 25-1400)
Pressure level ASME 150 - ASME 2500
Connection method According to the API 6D standard
Connection method RF and RTJ comply with B16.5 and B16.47
BW, butt welding in accordance with B16.25
SW, socket welding, in accordance with B16.11
Clamp connection
Materials; Carbon steel, stainless steel, low-temperature carbon steel, duplex stainless steel, super duplex stainless steel, nickel-based alloy
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| المنتج | رمز المنتج | النقاء | الحجم | تواصل معنا |
Function
Double Barrier and Discharge Design (DBB
Pure graphite secondary seal
Anti-static device
Anti-splashing
Sealant can be urgently injected onto the valve seat and valve stem
Provide valve stem packing with low emission
O-ring/lip seal and graphite-filled structure
CRA surfacing is applied to all dynamic sealing areas or all wet areas
The length of the valve cover can be changed according to the working temperature
Testing and certification
Comply with API 6D&ISO 5208 and API 598 inspection and testing
Comply with the fire protection standards and fire protection tests of API 607
SIL 3 certification in compliance with IEC61508
Comply with the emission standards of ISO15848
PED 2014/68 / UE

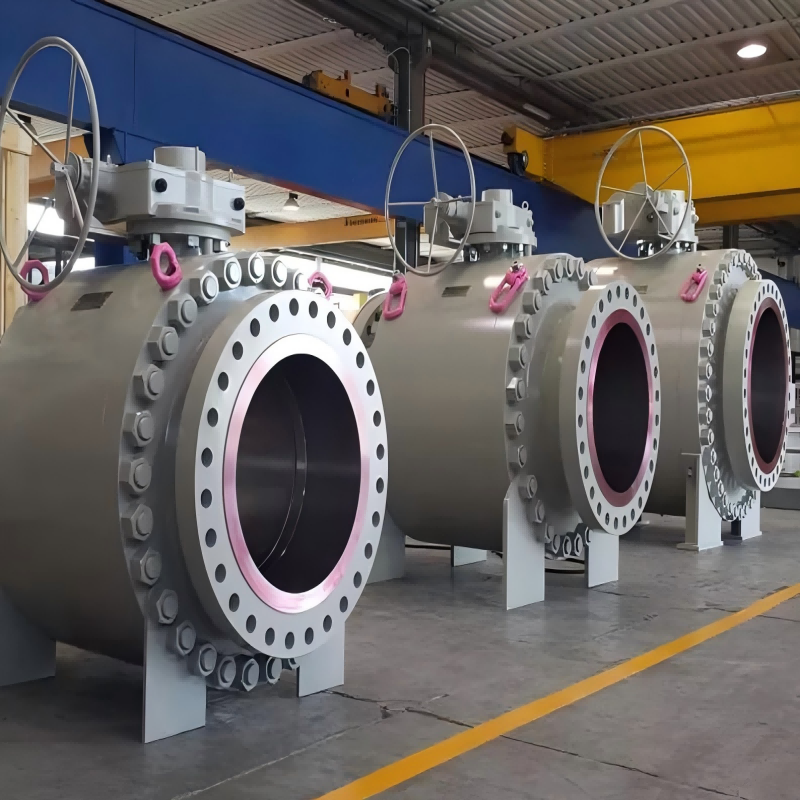

Side-mounted fixed ball valves are manufactured in accordance with the API 6D standard. The entire series of forged valves adopt two-piece or three-piece designs, featuring a solid double fixed shaft structure and two independent valve seats, which facilitate bidirectional sealing and ensure the highest level of sealing and reliability under high pressure and temperature conditions in all critical isolation applications. The material selection is fully customizable to meet the project specifications of customers, and several unique functions are provided to offer an enhanced technical solution suitable for corrosive and abrasive Marine environments.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
