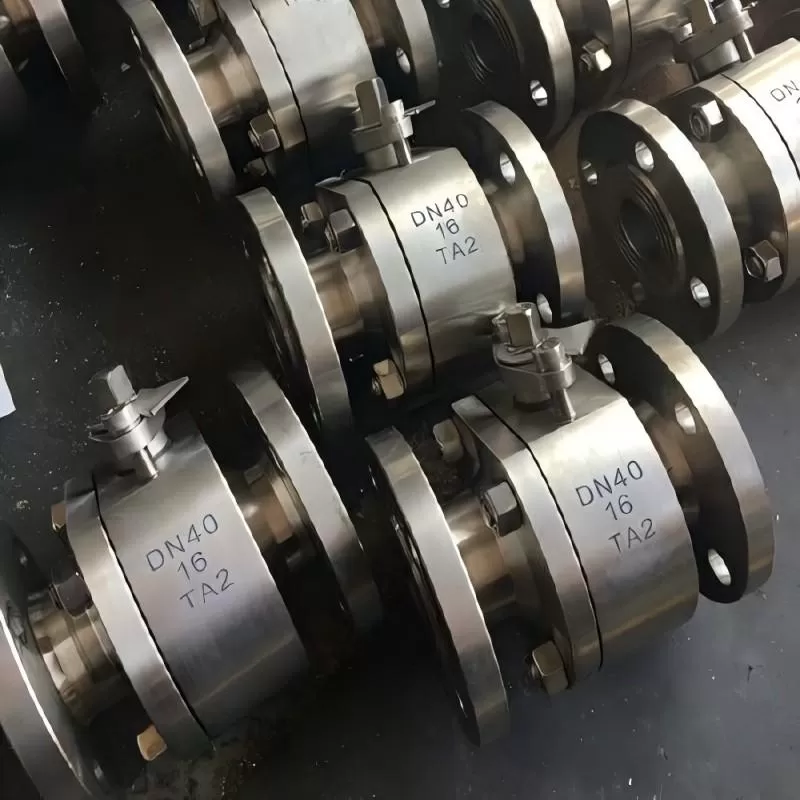

Titanium ball valve, ball valve

Titanium ball valve bodies and internal components have excellent stability and self-passivation ability of the oxide film in highly corrosive environments, which enables them to resist strong corrosion under various harsh working conditions. The chemical stability of the passive oxide film on its surface in corrosive media. For neutral, oxidizing and weakly reducing medium environments, the passive oxide film itself has very good stability. For high-temperature or low-pH reductive corrosive media, to enhance the stability of the passive oxide film, methods such as adding corrosion inhibitors (such as air, water, heavy metal ions, and anions, etc.), titanium surface ion modification treatment, and cation treatment can be adopted to improve the corrosion resistance and surface hardness of titanium in reductive media to meet the application requirements. It is used to cut off or connect the medium in pipelines and is widely applied in the chlor-alkali industry, soda ash industry, pharmaceutical industry, fertilizer industry, fine chemical industry, textile fiber synthesis and dyeing industry, basic organic acid and inorganic salt production, nitric acid industry, etc.

Features:

Among various valves, ball valves have the smallest flow resistance. When a full-bore ball valve is opened, the ball passage, valve body passage and connecting pipe diameters are equal and form the same diameter, allowing the medium to flow through almost without any loss

2. The ball valve can be fully closed and fully opened by rotating 90°, and it opens and closes quickly. Compared with gate valves and globe valves of the same specification, ball valves are smaller in size and lighter in weight, which is convenient for pipeline installation

It has outstanding advantages such as light specific gravity, high strength, corrosion resistance and good pressure resistance

Execution standard:

Design standard: GB/T12234

Structural length: GB/T12221

Connection flange: HG, GB, JB

Test standards: JB/T9092, GB/T13927

It is used to cut off or connect the medium in pipelines and is widely applied in the chlor-alkali industry, soda ash industry, pharmaceutical industry, fertilizer industry, fine chemical industry, textile fiber synthesis and dyeing industry, basic organic acid and inorganic salt production, nitric acid industry, etc.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
