Foam metal
Foam metal is a special metal material with foam pores. Through its unique structural characteristics, foam metal has a series of advantages, such as low density, good heat insulation performance, sound insulation performance and can absorb electromagnetic waves. It is a new kind of material gradually developed with human science and technology, which is often used in aerospace, petrochemical and other industrial development.

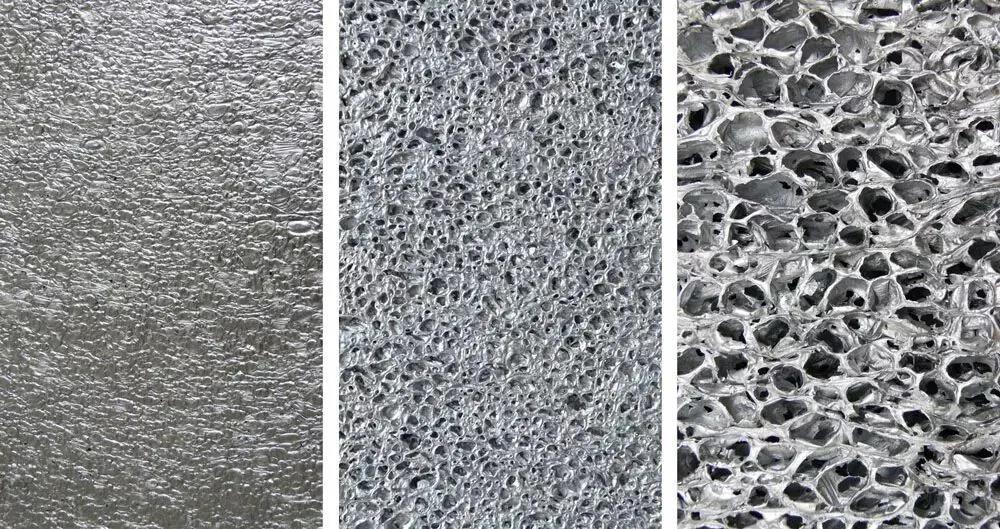

A metallic foam or ceramic foam is a cellular structure consisting of a solid metal or ceramic material containing a large volume fraction of gas-filled pores. The pores can be sealed (closed-cell foam) or can form an interconnected network (open-cell foam). The defining characteristic of these foams is a very high porosity, with typically 75-95% of the volume consisting of void spaces. The strength of foamed material possesses a power law relationship to its density: for example, a 20% dense material is more than twice as strong as a 10% dense material. Metallic foams typically retain some physical properties of their base material. Foam made from non-flammable metal will remain non-flammable, and the foam is generally recyclable back to its base material. The coefficient of thermal expansion also typically remains similar, while thermal conductivity is likely to be reduced.
APPLICATION
thermal engineering

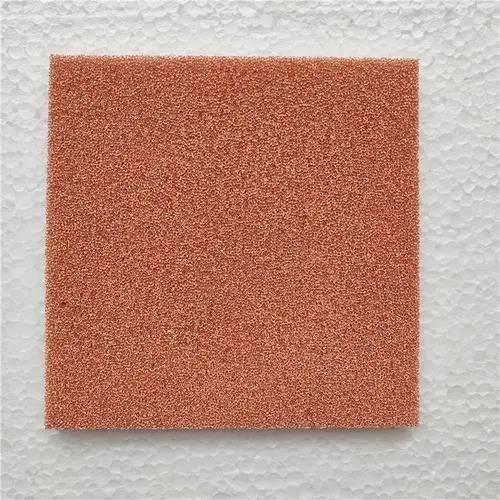

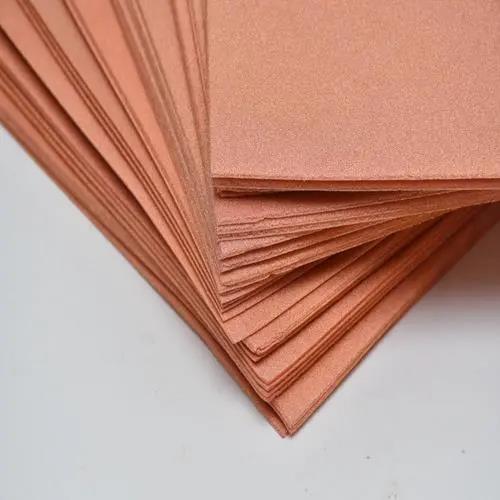

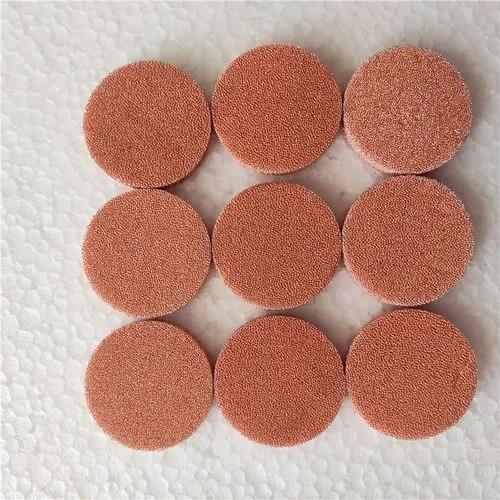

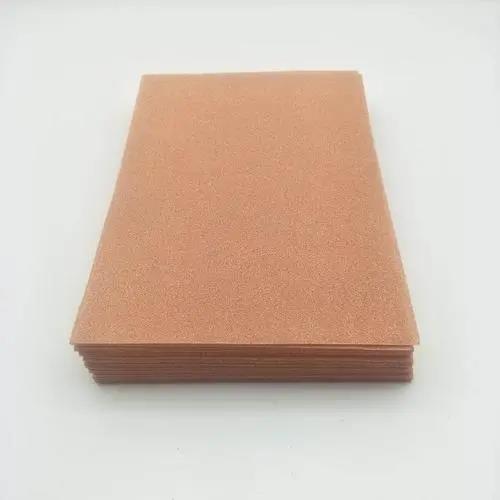

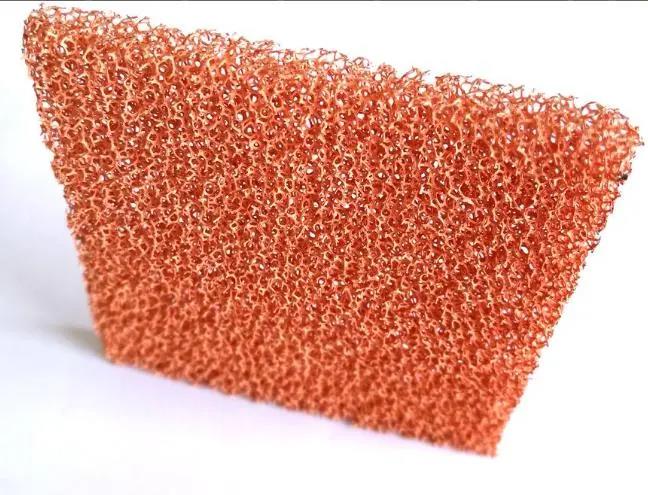

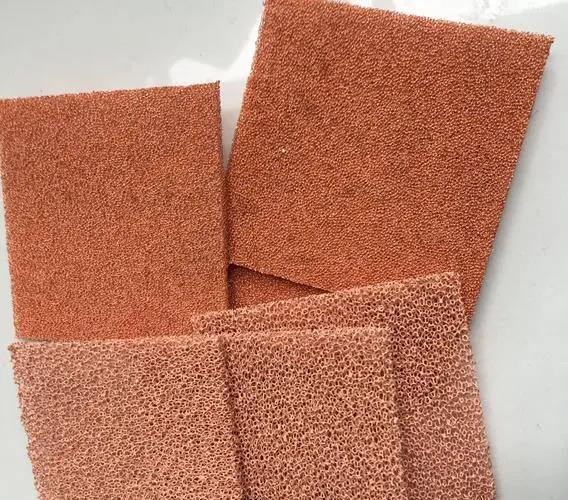

Copper foam has good electrical and thermal conductivity, can be used in heat pipe, heat soaking board core material, LED cooling material,etc
Filter material field
The unique three-dimensional pore structure of foam metal materials provides a larger specific surface area, suitable for a variety of high-temperature and corrosive applications, such as oil well sand control, automotive (especially diesel) exhaust, and oil smoke filtration
Shielding material field
The unique mechanical properties of foam metal materials make it an excellent energy absorbing material, and the metal properties it retains make it have a good performance in construction, special parts and many other fields...
BE FORUery material field
Nickel foam and iron nickel materials as the advantages of metal foam materials Research Institute has been widely used in filtration, bE FORUery, catalytic fields, the newly developed copper foam as a new generation of bE FORUery fluid collection is also continuously used for bE FORUeries
Metals and Alloys
Open-celled metal foams are usually replicas produced using open-celled polyurethane foams as a skeleton. These foams have found a wide variety of applications in heat exchangers, energy absorption, flow diffusion and lightweight optics. Extremely fine-scale open-cell foams are used as high-temperature filters in the chemical industry. Metallic foams used in compact heat exchangers increase the heat transfer at the cost of an additional pressure drop. However, their use permits the physical size of a heat exchanger to be reduced substantially, and therefore also the fabrication costs.
