رمز المنتج : VF--ZCC-Z50-CU

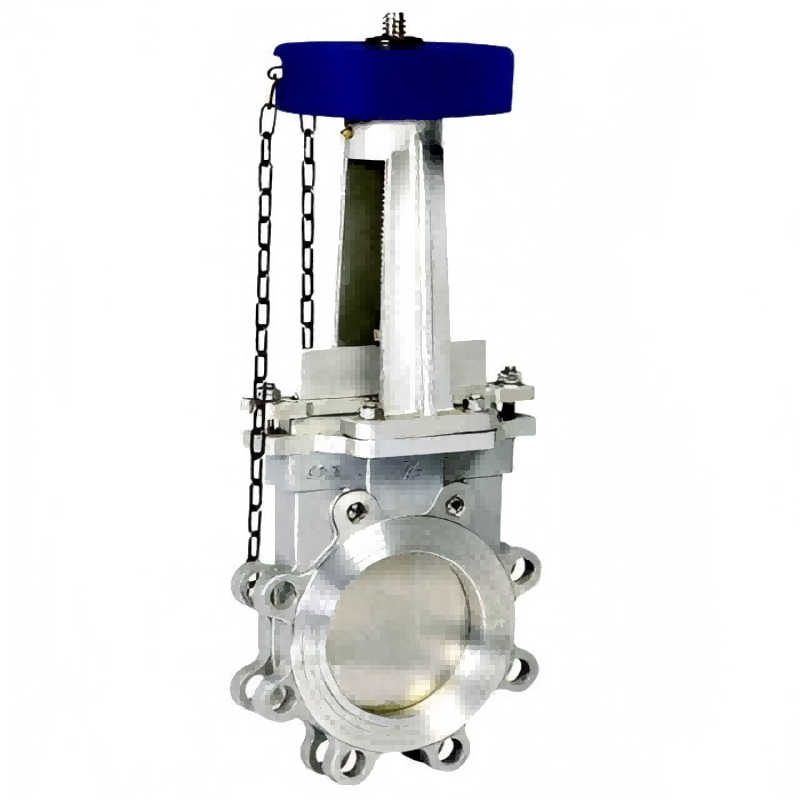

PZL43 Sprocket knife gate valve product performance parameters:
Nominal diameter DNmm; 50-600.
Nominal pressure (MPa); 0.6, 1.0, 1.6 (150LB)
Shell test (MPa); 0.9, 1.5, 2.4
Seal test (MPa); 0.66, 1.1, 1.8
Operating temperature; 100 ℃ or less
Valve body, valve cover; Stainless steel, carbon steel, gray cast iron
Ram; Carbon steel, stainless steel
Valve stem; Stainless steel
Sealing surface; Rubber, PTFE, stainless steel, carbide
Use media; Pulp, sewage, cinder, ash
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| المنتج | رمز المنتج | النقاء | الحجم | تواصل معنا |
PZL43 Sprocket clamp knife gate valve Product introduction:
Ultra-short structural length, save materials, can greatly reduce the overall weight of the pipeline system. This kind of gate valve occupies a small effective space, can effectively support the strength of the pipeline, and can reduce the possibility of pipeline vibration. The ram is made of austenitic stainless steel, which greatly improves the corrosion resistance and can effectively prevent the sealing leakage caused by the corrosion of the ram.
Design features:
1. Ultra-short structural length, save materials, can greatly reduce the overall weight of the pipeline system.
2. Occupy a small effective space, can effectively support the strength of the pipeline, can reduce the possibility of pipeline vibration.
3. The ram is made of austenitic stainless steel, which greatly improves the corrosion resistance and can effectively prevent the sealing leakage caused by the ram corrosion.
4. The upper sealing packing adopts flexible PTFE, reliable sealing, light and flexible operation. The ram has the function of a knife and can effectively cut off all kinds of debris in the medium
Ultra-short structural length, save materials, can greatly reduce the overall weight of the pipeline system. This kind of gate valve occupies a small effective space, can effectively support the strength of the pipeline, and can reduce the possibility of pipeline vibration.
