Sanitary grade arc valve, Arc valve, Sanitary grade valve

Product Details

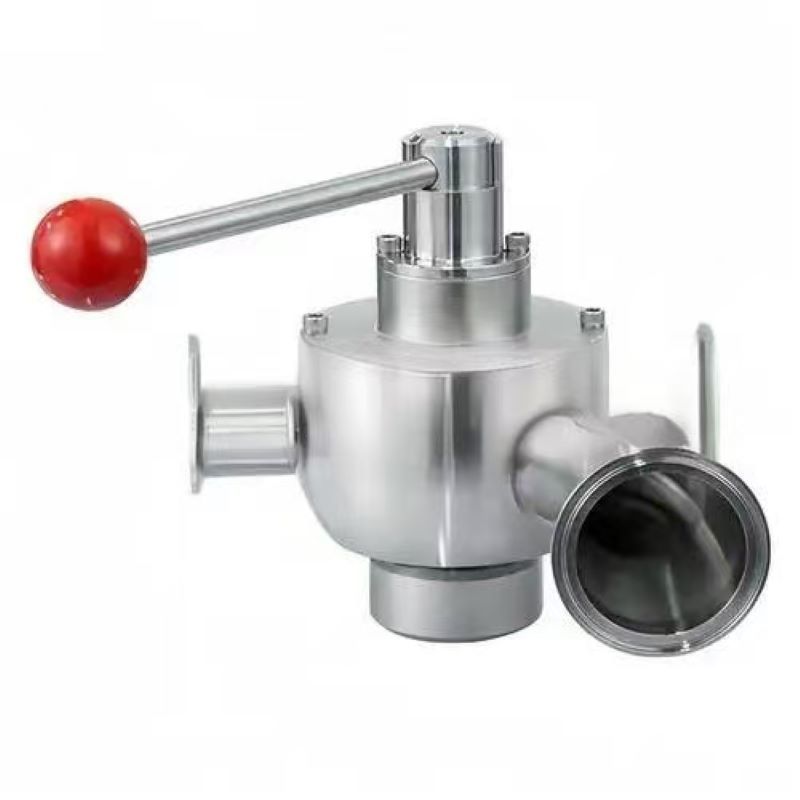

Youdaoplaceholder0 Sanitary arc valve ‌ is a highly clean design valve, mainly used in pipeline cleaning systems, and can also be used as a control element for cutting off, reversing or complex process pipeline systems. Its core functions include separate control of channels, flexible cleaner through valves, etc. ‌

Characteristics

Multi-functional design: It can replace ball valves and not only function in pipeline cleaning systems but also serve as a key component for cutting off, reversing or complex process pipeline systems.

Independent channel control: The channels of the valve are independently controlled respectively. The opening and closing states of each channel can be flexibly adjusted according to actual needs to meet different process requirements.

High cleanliness and hygiene design: Adopting a sanitary-grade design, it ensures that the parts in contact with the medium meet high hygiene standards, avoiding contamination and cross-infection.

Diverse specifications: The specifications range from 1" to 4", with diameters from DN25 to DN100, catering to different pipe sizes and flow requirements.

High-quality material: Made of SS304/316L material, it features excellent corrosion resistance and hygiene performance.

Temperature adaptability range: The maximum temperature can reach 140℃, and it can operate stably in different working environment temperatures.

Pressure tolerance: The external arc pressure is 3bar and the internal arc pressure is 10bar, which can adapt to certain pressure changes.

Full path design: Full path, no flow resistance, ensuring smooth medium flow and reducing energy loss.

Good particle permeability: The particle passage is equal to the diameter, making it suitable for the transportation of media containing particles.

High-viscosity material handling: High-viscosity materials remaining in pipelines can be recovered with the help of pipeline flexible cleaners, thereby enhancing production efficiency.

Application field

The sanitary arc valve is a powerful valve product that can be widely applied in industries with extremely high hygiene requirements such as food, beverages, pharmaceuticals, and chemicals. In the field of food processing, it can be used in the pipeline systems of various food production lines to ensure the hygiene and safety of the food production process. In the beverage industry, provide reliable valve control for the production and transportation of beverages; In the pharmaceutical industry, it meets strict hygiene standards for drug production and is suitable for complex pharmaceutical process pipeline systems. In the chemical industry, it can be used in chemical process flows with high cleanliness requirements.
