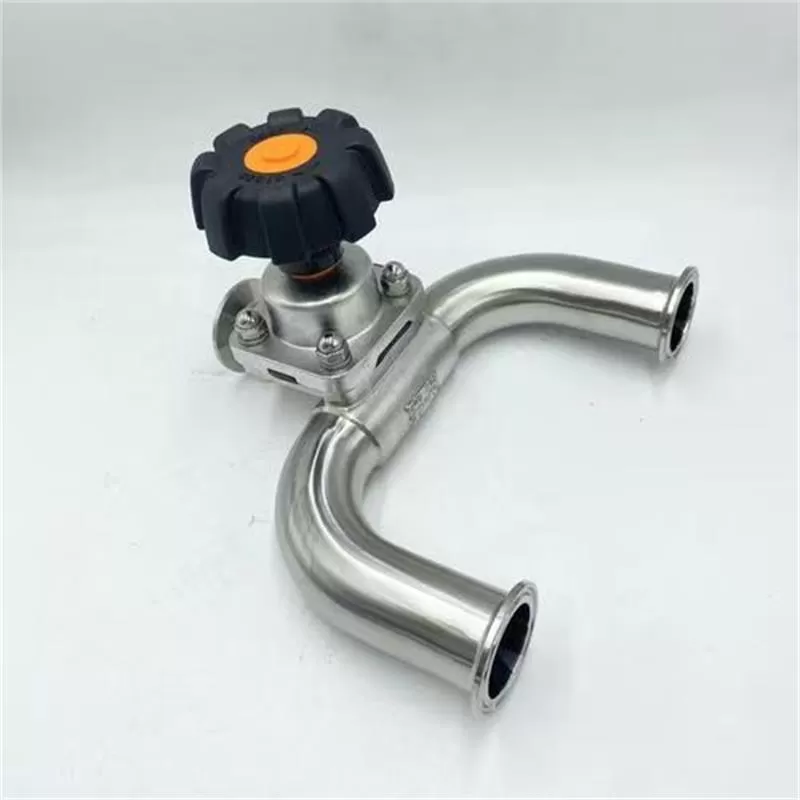

Sanitary U-shaped three-way diaphragm valve, Three-way diaphragm valve, Diaphragm valve

Product Details

Sanitary U-shaped three-way diaphragm valves are mainly applied in engineering fields with extremely high hygiene requirements, such as material liquid sampling, biological systems, and laboratories. It has a particular advantage in the filling of pharmaceutical systems, which can ensure the precise control and hygiene safety of the drug production process.

Characteristics

Rich valve body structures: It features various valve body structure methods such as T-shaped three-way, L-shaped three-way, U-shaped three-way, straight-through, and multi-channel combinations, meeting the complex demands of different engineering scenarios.

High service life performance: Under a working pressure of 3bar, the opening and closing times can reach 1.5 million times, featuring an extremely long service life, reducing the frequency of equipment replacement and lowering costs.

Strict standard certification: Complies with international standards such as BPE 3A, DIN, ISO, and IDF, and has passed authoritative certifications such as PED/97/23/EC, 3A/ 18-03, and FFDA.177.2600, ensuring reliable and guaranteed quality.

Wide temperature adaptability: Depending on the sealing material, the maximum temperature of stainless steel actuators can reach -20 to 150℃, while that of plastic actuators is -20 to 130℃, adapting to various working environment temperatures.

Diverse pressure options: Both normally closed rubber and PTFE offer a variety of pressure options, including 8bar for normally closed rubber and 6bar for PTFE (optional), 6bar for normally closed rubber and 4.5bar for PTFE (standard), and 8bar for normally open and double-acting rubber and 6bar for PTFE, meeting the pressure requirements of different working conditions.

High-quality valve body materials: The forged valve body adopts high-quality materials such as 316L/1.4404, ASME BPE 316L, 1.4435NB2 Fe≤0.5%, etc. The cast valve body is 1.4404/316L, which has excellent corrosion resistance and hygiene performance.

Multiple connection methods: It offers various connection methods such as welding, clamps, flanges, and threads, facilitating connection and installation with different pipeline systems.

Compatible pneumatic actuators: Pneumatic actuators are suitable for straight-through, three-way, multi-channel valve bodies, welded combination valve bodies, and tank bottom valves, etc. They are flexible and convenient to operate.

It should be applied in the appropriate context

Youdaoplaceholder0 Food and beverage industry ‌ : Stainless steel piping systems in food industries such as brewing, dairy products, and beverages can be used for control and on-off tasks of pipeline fluids ‌

Youdaoplaceholder0 Pharmaceutical industry ‌ : Plays a role in the aseptic pharmaceutical process, including fermentation tanks, preparation tanks, filling machines, freeze-drying equipment, aseptic filters, water production equipment, PW, WFI conveying and distribution, aseptic ultrafiltration machines, aseptic fluid conveying and CIP, SIP and other links ‌

Youdaoplaceholder0 Bioengineering and cosmetics industry ‌ : Used in related fluid equipment and piping systems to ensure the cleanliness of the production process and the hygiene and safety of the products ‌
