904L stainless steel flanged three-way ball valve,flanged three-way ball valve,

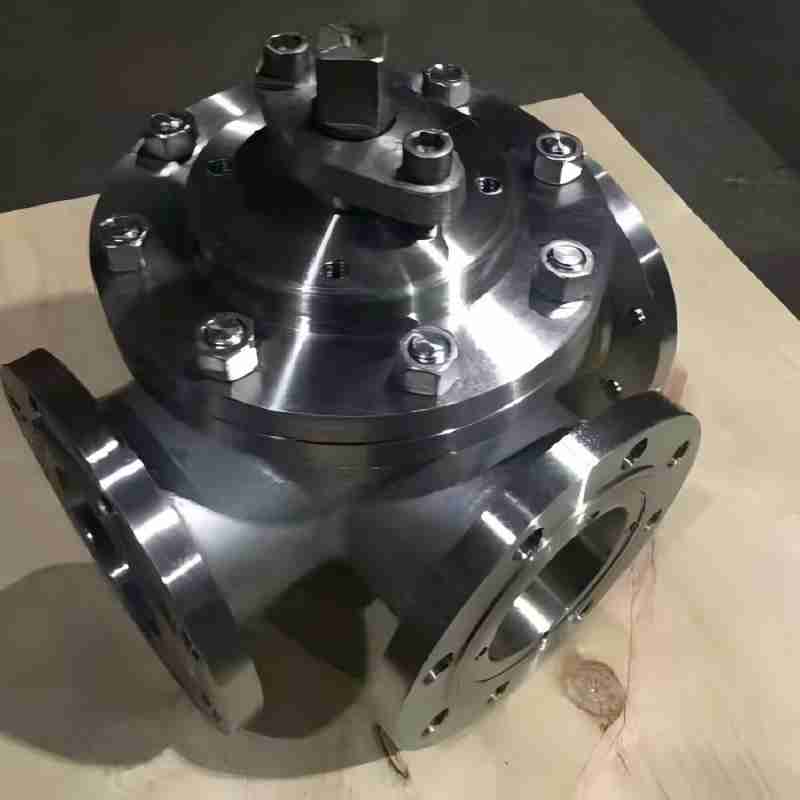

904L stainless steel flanged three-way ball valve, T-type or L-type structure, material 904L (N08904, 1.4539, 00Cr20Ni25Mo4.5Cu) belongs to super austenitic acid-resistant stainless steel, pressure PN10-PN64, diameter DN15-DN250 Models: Q44F, Q45F, Q644F, Q645F, Q945F, Q944F, Q344F, Q345F. Applicable media: Sodium fluoride oxide, seawater, sulfuric acid, hydrochloric acid, phosphoric acid, hydrofluoric acid, brine, high-concentration chloride ion wastewater.

Q945F, Q45F-904L stainless steel flanged three-way ball valves, equipped with electric actuators and pneumatic actuators, can achieve automatic remote control operation and can also be connected to DCS and PLC control systems. According to the number of holes on the sphere, there are two types: L-shaped three-way and T-shaped three-way. The L-shaped three-way sphere has two holes and is used for reversing. The T-shaped three-way sphere has three holes, and its function is to converge or divert the medium.

904L (N08904, 1.4539, 00Cr20Ni25Mo4.5Cu) is a super austenitic acid-resistant stainless steel. The 904L material has excellent activation-passivation transformation ability and outstanding corrosion resistance. It also shows good corrosion resistance in non-oxidizing acids such as sulfuric acid, acetic acid, formic acid, and phosphoric acid. It has excellent resistance to pitting corrosion in neutral chloride-containing media, and also has good resistance to crevice corrosion and stress corrosion. It is suitable for various concentrations of sulfuric acid below 70℃, and has excellent corrosion resistance to any concentration and temperature of acetic acid under normal pressure, as well as in mixed acids of formic acid and acetic acid

Applicable media: Sodium fluoride oxide, seawater, sulfuric acid, hydrochloric acid, phosphoric acid, hydrofluoric acid, brine, high-concentration chloride ion wastewater.
