Pneumatic high-platform Y-type three-way ball valve,Y-type three-way ball valve,way ball valve

The pneumatic high-platform Y-type three-way ball valve is different from the 90-degree right Angle of the L-type three-way and T-type three-way. The Y-type three-way ball valve is a special type of three-way ball valve. There are seven possible Angle combinations for the three diameters of the valve body, suitable for different pipeline wiring. Pressure: PN1.0-PN6.4MPA, diameter: DN15-DN250, materials: 2205, 2507 duplex steel, 904L, 1.4529, 254SMo stainless steel, C2000, C276 Hastelloy, SS317L, SS316, SS304 stainless steel.

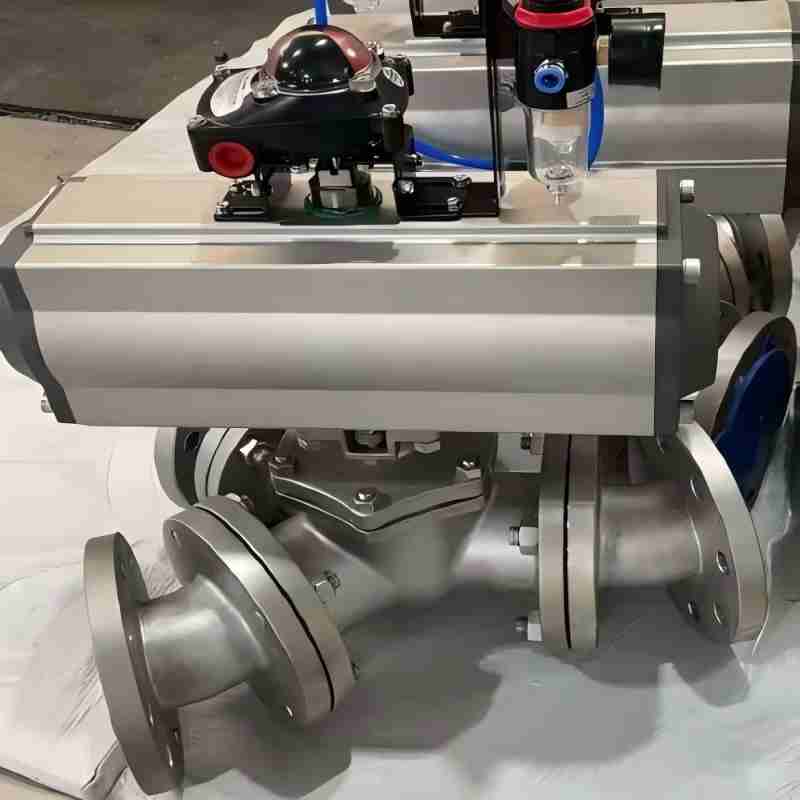

The pneumatic high-platform Y-type three-way ball valve is equipped with a high platform for convenient connection with pneumatic systems. The angles between the three ports of the valve body can be: 180 ° to 45 ° to 135 °, 180 ° to 90 ° to 90 ° and 157.5 ° 157.5 ° to 45 °, 135 ° to 135 ° to 90 ° and 112.5 ° 112.5 ° to 135 °, 120 ° to 120 ° to 120 °, meet a variety of pipe line.

The Q642F- pneumatic high-platform Y-type three-way ball valve can be reversing, diverting and converting. Pneumatic actuators can be equipped with double-acting pneumatic or single-acting pneumatic systems, double-controlled solenoid valves, single-controlled solenoid valves, limit switches, handwheels, and air filter pressure reducers. Single-acting pneumatic, the valve is reset by the restoring tension of the spring.

Cylinders are classified by torque into rack and pinion pneumatic (with a small and constant output torque) and fork-type pneumatic (with a large output torque that varies with Angle).

Cylinder materials: aluminum alloy, cast steel, cast iron, stainless steel.

Applicable media: Sodium fluoride oxide, seawater, sulfuric acid, hydrochloric acid, phosphoric acid, hydrofluoric acid, brine, high-concentration chloride ion wastewater.
