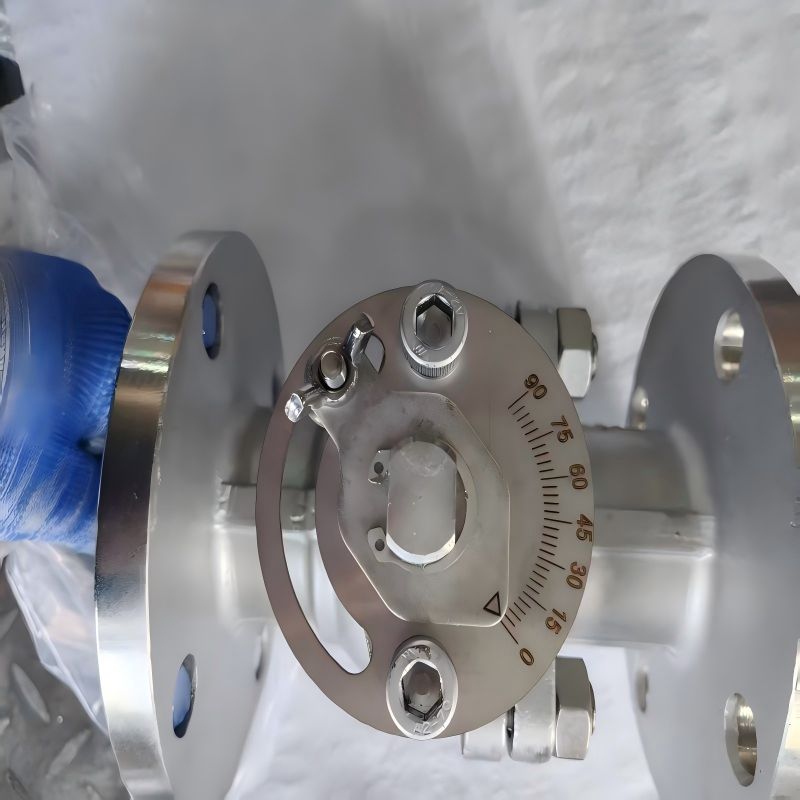

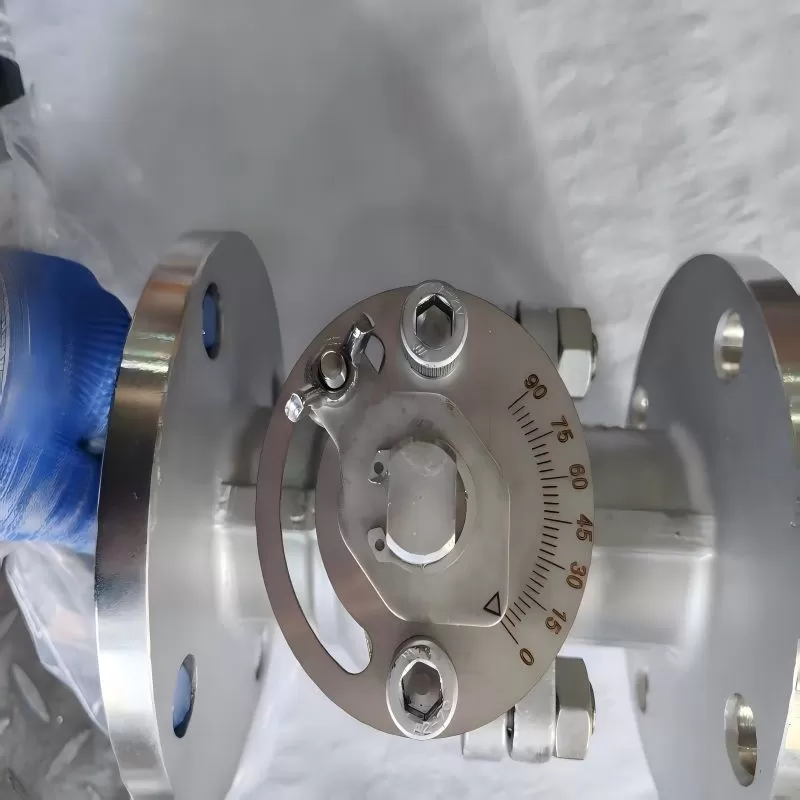

Ball valve with dial,Ball valve

The opening and closing part of the ball valve with a dial is a sphere. The sphere rotates around the valve body line to achieve opening and closing. Manual switch, flange connection, floating ball, design pressure PN16, valve body 304 stainless steel. It is widely applied in industries such as petroleum refining, long-distance pipelines, chemical engineering, papermaking, pharmaceuticals, water conservancy, power, municipal services, and steel

Structural principle

The Q41F16C- dial ball valve is a type of valve that uses a ball with a circular channel as the opening and closing component. The ball rotates along with the valve stem to achieve the opening and closing actions. The opening and closing part of the dial ball valve is a perforated ball that rotates around an axis perpendicular to the channel, thereby achieving the purpose of opening and closing the channel.

It is widely applied in industries such as petroleum refining, long-distance pipelines, chemical engineering, papermaking, pharmaceuticals, water conservancy, power, municipal services, and steel

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
