رمز المنتج : VF--QCC-Q236-CU
Nominal pressure: 1.0-1.6MPa
Nominal diameter: 50-1200mm
Applicable media: water, oil and other non-corrosive liquids
Applicable temperature: 0-200℃
Test standard: GB/T 13927API598
Structural principle

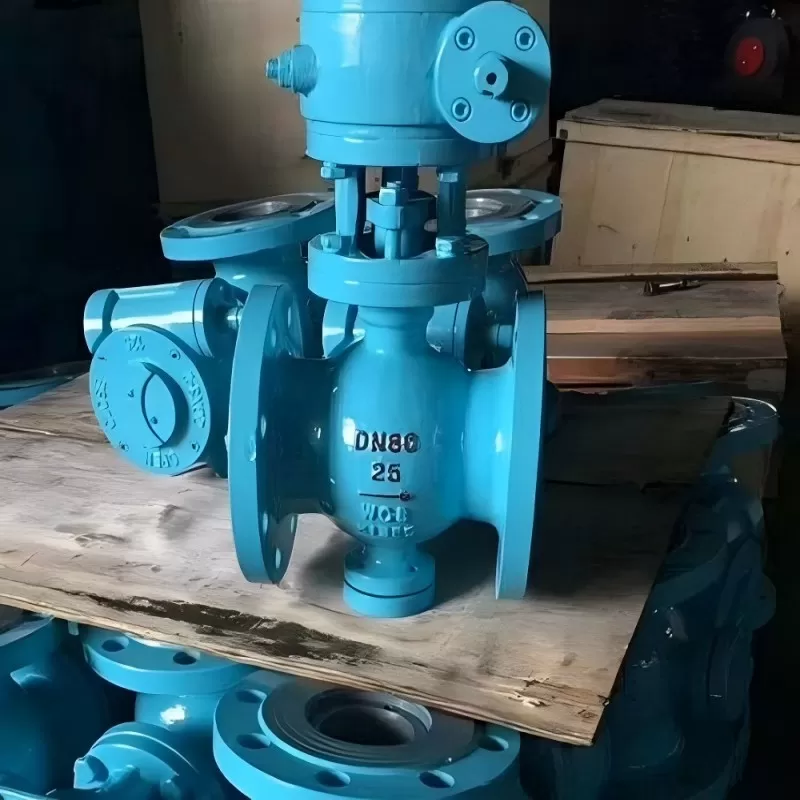

The eccentric half ball valve is composed of main components such as the valve body, eccentric shaft, valve cover, ball crown, shaft sleeve and valve seat. It achieves the opening and closing of the valve by rotating the eccentric shaft 90°, thus playing a role in cutting off the medium
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| المنتج | رمز المنتج | النقاء | الحجم | تواصل معنا |
The full-bore eccentric half ball valve is a relatively new type of ball valve. It has some advantages in its own structure, such as no friction during opening and closing, the seal is not easy to wear, and the opening and closing torque is small. This can reduce the specifications of the equipped actuators. When equipped with a multi-turn electric actuator, it can achieve the regulation and tight cutting off of the medium. It is widely applicable to working conditions such as petroleum, chemical industry, and urban water supply and drainage that require strict shut-off.
It is widely applicable to working conditions such as petroleum, chemical industry, and urban water supply and drainage that require strict shut-off.
