رمز المنتج : VF--QCC-Q218-CU
Valve Design
Based on API 6D and customer requirements
Temperature range
-150 to 428°F (-101 to 220°C)
Size
NPS 2 -24 (DN 50-600)
Pressure range
ASME 900-ASME 2500
Structural length
According to API 6D
Connection method
Norsok L005 Compact French
Freudenberg/Grayloc compact flange
Valve body design
Forged bolted two-piece and three-piece types
Valve seat design
Soft seal or metal seal
Double-piston valve seat
Combined valve seat
Function
Double plug bar design (DBB), pure graphite for secondary sealing, anti-static equipment, anti-blow valve stem, lip seal configuration
Emergency sealant can be injected onto the valve seat and valve stem, which can provide valve stem packing with low instantaneous discharge.
O-ring/lip seal and graphite configuration, surfacing welding in all dynamic sealing areas or overly wet parts
Compact and lightweight design
Smaller-sized and lighter-weight pipe welding neck flanges can reduce the weight by 80%
Operation mode
Manual: Wrench or padlock gear
Drive: Pneumatic/Hydraulic/electrical
Testing and certification
Comply with API 6D& ISO 5208 and API 598 inspection and testing
Conduct fire resistance and fire tests in accordance with API 607
SIL 3 certification in compliance with IEC61508
Emissions that comply with ISO15848
PED 2014/68 / UE
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| المنتج | رمز المنتج | النقاء | الحجم | تواصل معنا |

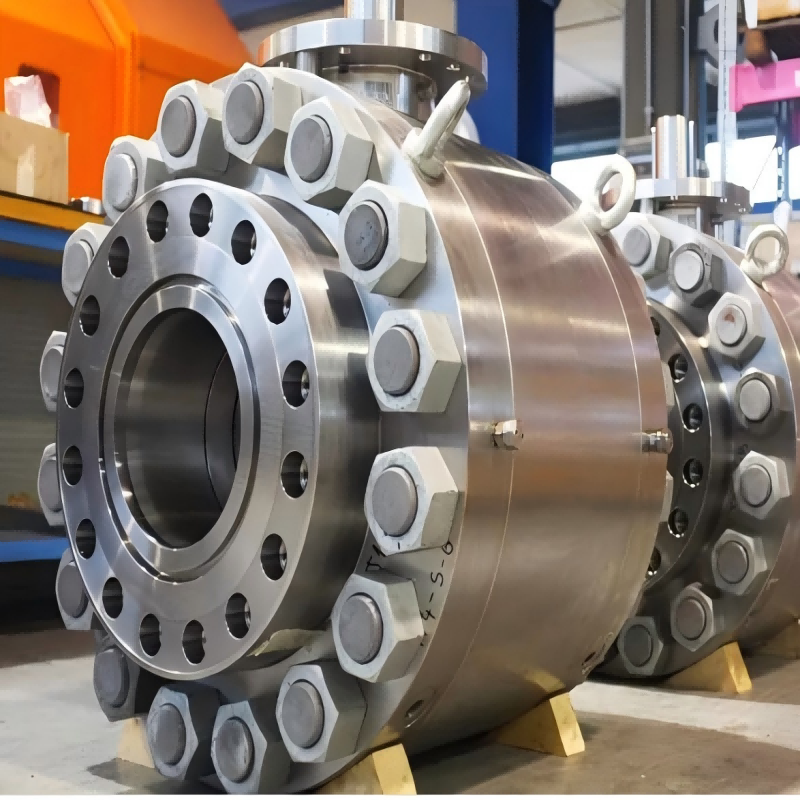

We offer a wide range of two-piece or three-piece forged bolt valve bodies, support plate or fixed shaft mounted ball valves. Two independent valve seats provide a simple bidirectional seal to ensure the highest level of sealing and reliability under high pressure and temperature conditions in critical isolation application environments. High-pressure compact ball valves have the same reliability and quality level as traditional API valves. However, due to the integration of a compact flange design in the valve closing part, they significantly save space and weight. The compact welded neck flange for connecting pipes and valves further saves space. Our design and material selection are fully customizable to meet the project specifications of our clients.
We offer a wide range of two-piece or three-piece forged bolt valve bodies, support plate or fixed shaft mounted ball valves. Two independent valve seats provide a simple bidirectional seal to ensure the highest level of sealing and reliability under high pressure and temperature conditions in critical isolation application environments. High-pressure compact ball valves have the same reliability and quality level as traditional API valves. However, due to the integration of a compact flange design in the valve closing part, they significantly save space and weight. The compact welded neck flange for connecting pipes and valves further saves space. Our design and material selection are fully customizable to meet the project specifications of our clients.
