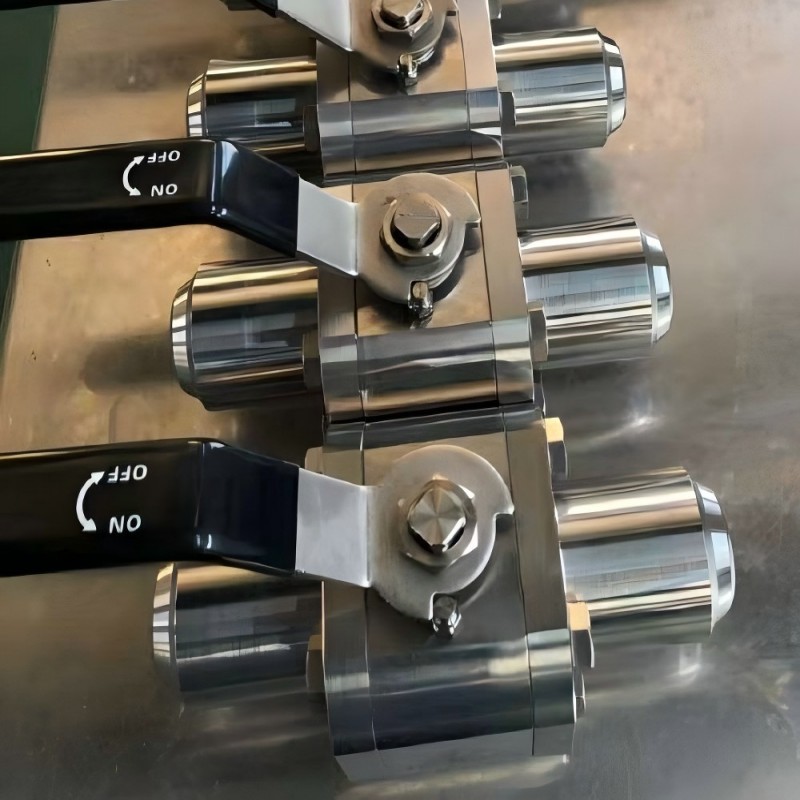

High-pressure welded ball valve, welded ball valve,ball valve

High-pressure butt-weld ball valves keep the valve unobstructed or closed by rotating the valve stem. High-pressure butt-weld ball valves are easy to operate, compact in size, can be made in large diameters, have reliable sealing, a simple structure, and are convenient for maintenance. The sealing surface and the ball surface are often in a closed state, making them less prone to erosion by the medium. They are widely used in various industries.

Characteristics

All components of this product are forgings

2. The bottom-mounted valve stem is equipped with an inverted sealing structure to ensure reliable sealing at the packing area and prevent the valve stem from coming out

3. Embedded valve seat, with an O-ring set behind the valve seat to ensure that the medium is not exposed.

enforce standards

Design and manufacturing standard: BS5351 MSS SP-118;

Inspection and Testing: API 598, GB/T13927, JB/T9092

Socket welding standards: ANSI B16.11, JB/T1751

Threaded end standards: ANSI B16.11, JB/T1751

Butt welding end standards: ANSI B16.25, JB/T12224

Flange end standards: ANSI B16.5, JB79

Purpose

It is applicable to urban construction, chemical industry, metallurgy, petroleum, pharmaceuticals, food, beverages and environmental protection

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
