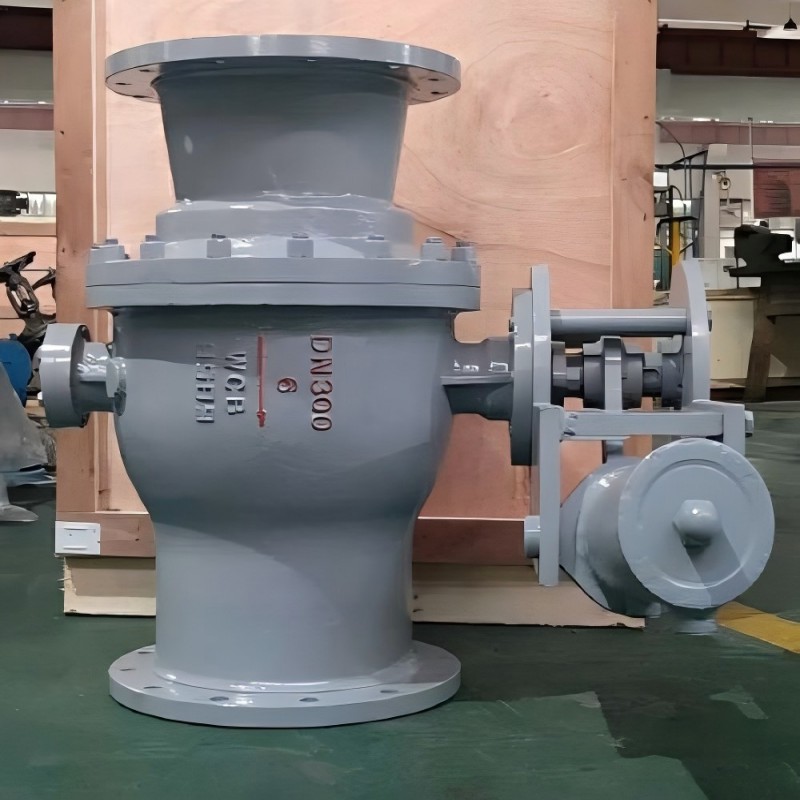

رمز المنتج : VF--QCC-Q234-CU
Nominal diameter: DN100 - DN300mm
Nominal pressure: PN0.25-0.6Mpa
Applicable temperature: 250℃
Valve body material: WCB, stainless steel;
Drive mode: Hydraulic
Connection method: Flange
Applicable media: Sweat particles, liquid, solid powder and other media. Applicable temperature: ≤280℃. Its main function is to be used for unloading ash at the bottom of the ash hopper. It is widely used in power, chemical, petrochemical, petroleum, mining, mechanical equipment matching and other fields.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| المنتج | رمز المنتج | النقاء | الحجم | تواصل معنا |
Structural characteristics
The valve body structure of the ash discharge ball valve is divided into two types: two-piece type and three-piece type.
2. The spherical surface of the ash discharge ball valve is hardened to enhance its wear resistance.
3. It adopts a single-seat design, which does not form an independent space in the middle cavity of the valve body, eliminating the possibility of the accumulation of media such as fly ash in the middle cavity and the friction on the spherical surface.
Working principle
The hydraulic ash discharge ball valve has the same 90-degree rotation lifting action. The difference is that the plug body is a sphere with a circular through hole or channel passing through its axis. The ratio of the spherical surface to the channel opening should be like this: that is, when the ball rotates 90 degrees, the entire spherical surface should be presented at the inlet and outlet, thereby cutting off the flow.
enforce standards
Design and manufacturing standard: GB/T 21385-2008
Structural length standard: GB/T 12221-2005
Connection flange standard: GB/T 9113
Pressure and temperature grade: GB/T 12224-2005
Test and inspection standard: GB/T 13927-200
Its main function is to be used for unloading ash at the bottom of the ash hopper. It is widely applied in fields such as power, chemical engineering, petrochemicals, petroleum, mining, and mechanical equipment matching.
