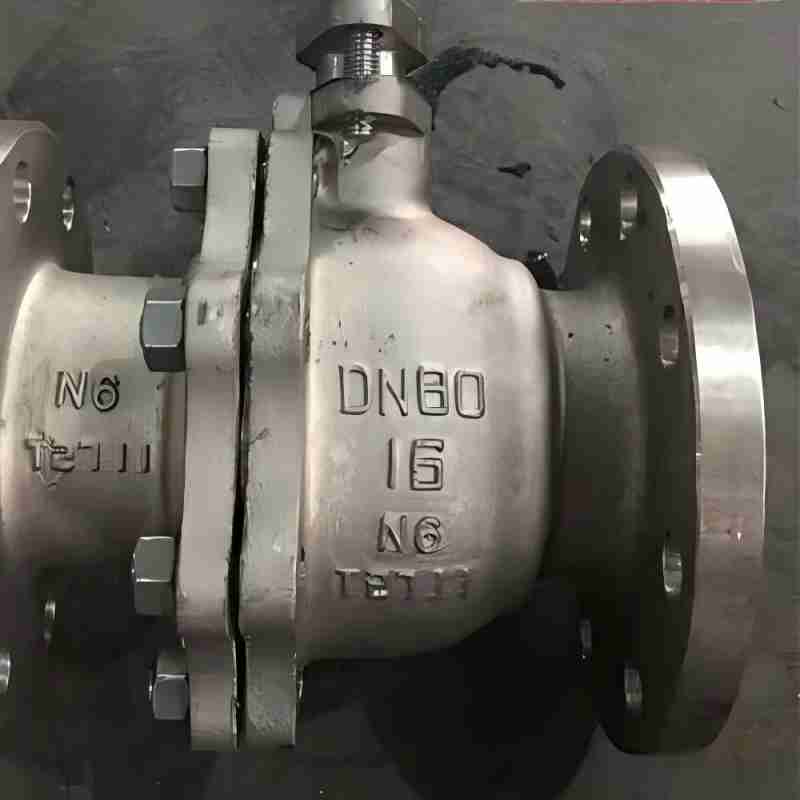

Nickel ball valve, ball valve

The nickel material ball valve has a spherical opening and closing part, which is driven by the valve stem to rotate around the axis of the ball valve. Ball valves are mainly used in pipelines to cut off, distribute and change the flow direction of the medium. It is widely used as a shut-off/connection valve in corrosive pipelines of petrochemical industry. The ball is floating. Under the action of medium pressure, the ball can produce a certain displacement and tightly press against the sealing surface at the outlet end to ensure the sealing at the outlet end. The floating ball valve has a simple structure and good sealing performance.

Structural principle

It can be tightly closed with just a 90-degree rotation operation and a very small torque. The completely equal inner cavity of the valve body provides a straight-through flow path with very little resistance for the medium. The main feature of ball valves is their compact structure, which makes them easy to operate and maintain

Characteristics

1. It adopts a specially designed compensatory movable metal valve seat structure, ensuring reliable sealing.

2. The balls and valve seats that have undergone special process treatment are suitable for higher temperatures and various media containing dust and solid particles.

3. This series of ball valves can be equipped with various drive devices.

Execution standard:

Design standards: GB/T12237, API6D, ASME B16.34

Structural length: GB/T12221, API6D, ASME B16.10

Connection flanges: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, S

Test standards: JB/T9092, GB/T13927, API6D, API598

It is widely used as a shut-off/connection valve in corrosive pipelines of petrochemical industry. The ball is floating. Under the action of medium pressure, the ball can produce a certain displacement and tightly press against the sealing surface at the outlet end to ensure the sealing at the outlet end.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
