رمز المنتج : VF--QCC-Q230-CU
Nominal pressure: PN10-16

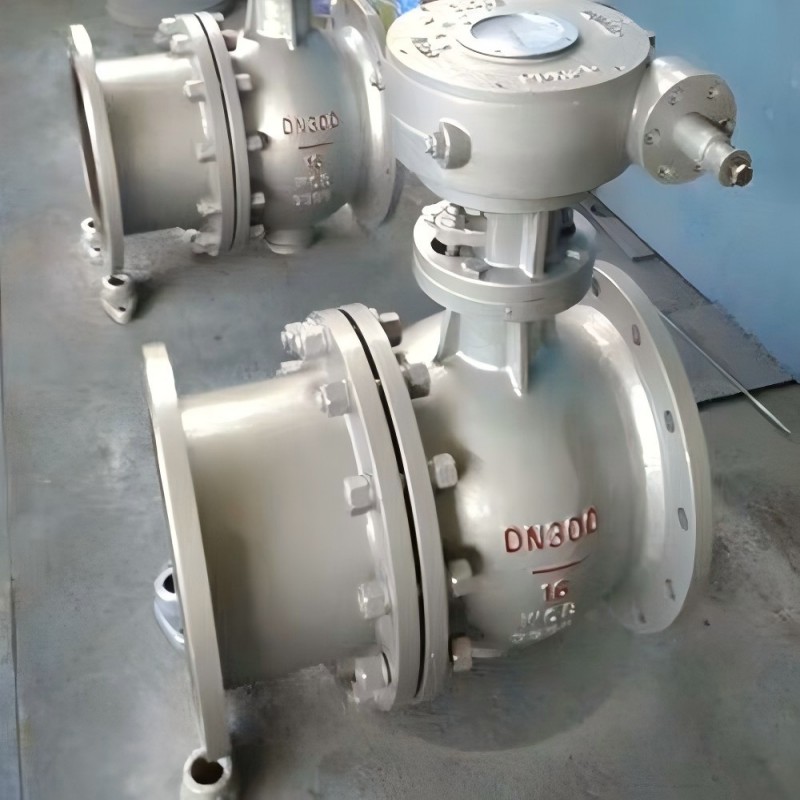

Nominal diameter: DN300-350
Applicable temperature: Hot air ≤260℃, smoke and dust gas medium, dust ≤425℃
The valve body material is WCB, the ball material is WCB+ hard alloy, the valve stem is 2Cr13 stainless steel, the gasket is fluororubber graphite gasket, and the valve seat sealing ring is A105+ hard alloy. It is mainly installed under the blast furnace coal probe in the metallurgical industry for opening and closing during material exploration.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| المنتج | رمز المنتج | النقاء | الحجم | تواصل معنا |
Features:
The internal valve seat is a movable valve seat, which has a certain wear compensation effect and is convenient for replacement and disassembly.
2. It has a wide range of applications and can basically be used with various common pipeline media.
3. The valve body is integrally cast, with fewer connection points, and thus fewer leakage points.
Execution standard:
Design and Manufacture: GB/T12237-2007/GB/T26146-2010
Structural length: GB12221-2005
Supply requirements: GB/T12252-2005
Pressure test: GB/T13927-2008
Pressure test inspection: GB/T13927-1992
It is mainly installed under the blast furnace coal probe in the metallurgical industry and is used for opening and closing during material exploration.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
