رمز المنتج : VF--QCC-Q243-CU
Nominal pressure: PN1.6-6.4MPa
Nominal diameter: DN15-DN250
Operating mode: Worm gear
Connection method: Flange
Valve functions: shut-off, reversing, diversion, and convergence.
Component material:
Valve body material: 2205, 2507 duplex steel, 904L, 1.4529, 254SMo stainless steel, C2000, C276 Hastelloy, 304, 316, 316L;
Sphere materials: 2205, 2507, 304, 304L, 316, 316L, 904L, 1.4529, 254SMo, C2000, C276;
Valve stem material: F53, F51, F304, F316, 904L, 1.4529, 254SMo, C2000, C276;
Valve seat sealing ring: PTFE, RTFE (reinforced PTFE), para-polystyrene PPL, PEEK.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| المنتج | رمز المنتج | النقاء | الحجم | تواصل معنا |

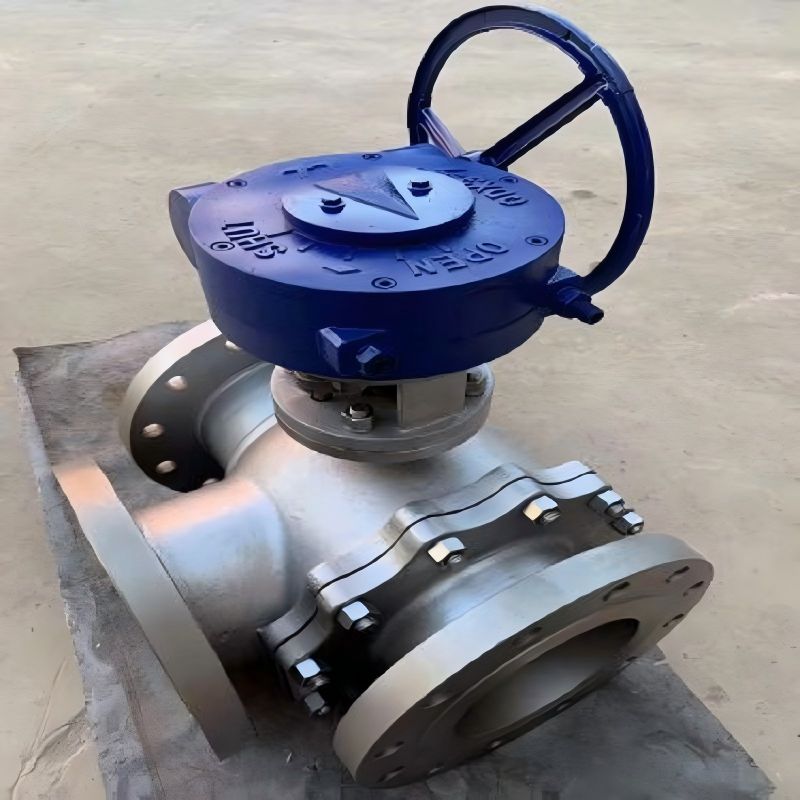

Worm gear stainless steel three-way ball valve, material: 2205, 2507 duplex steel, 904L, 1.4529, 254SMo stainless steel, C2000, C276 Hastelloy, SS317L, SS316, SS304 stainless steel, pressure PN1.0-PN6.4MPA, DN15-DN250, product model: Q344F, Q345F. The Q345F and Q344F worm gear stainless steel three-way ball valves are suitable for media such as sodium fluoride oxide, seawater, sulfuric acid, hydrochloric acid, phosphoric acid, hydrofluoric acid, brine, and high-concentration chloride ion wastewater.
Q345F and Q344F- worm gear stainless steel three-way ball valves are available in two types: L-type three-way and T-type three-way. The L-type three-way ball has two holes and is used for reversing. The T-shaped three-way sphere has three holes, and its function is to converge or divert the medium.
The L-type three-way ball valve is used for switching the flow direction of the medium and can connect two mutually perpendicular channels.
The T-type three-way ball valve features a four-seat seal and four flow combinations. It not only enables the switching of medium flow directions but also allows the three channels to be interconnected (two in and one out, combined flow or one in and two out, split flow). Additionally, it can close any one channel to connect the other two, flexibly controlling the combined flow or split flow of the medium in the pipeline.
Application standard:
Design and Manufacturing: GB/T12237, ANSI B16.34, API 608;
Structural length: GB/T12221
Flange dimensions: GB/T9113, ASME B16.5, JIS B2212, JIS B2214;
Inspection and Testing: GB/T13927.
The worm gear stainless steel three-way ball valve is suitable for media such as sodium fluoride oxide, seawater, sulfuric acid, hydrochloric acid, phosphoric acid, hydrofluoric acid, brine, and high-concentration chloride ion wastewater.
