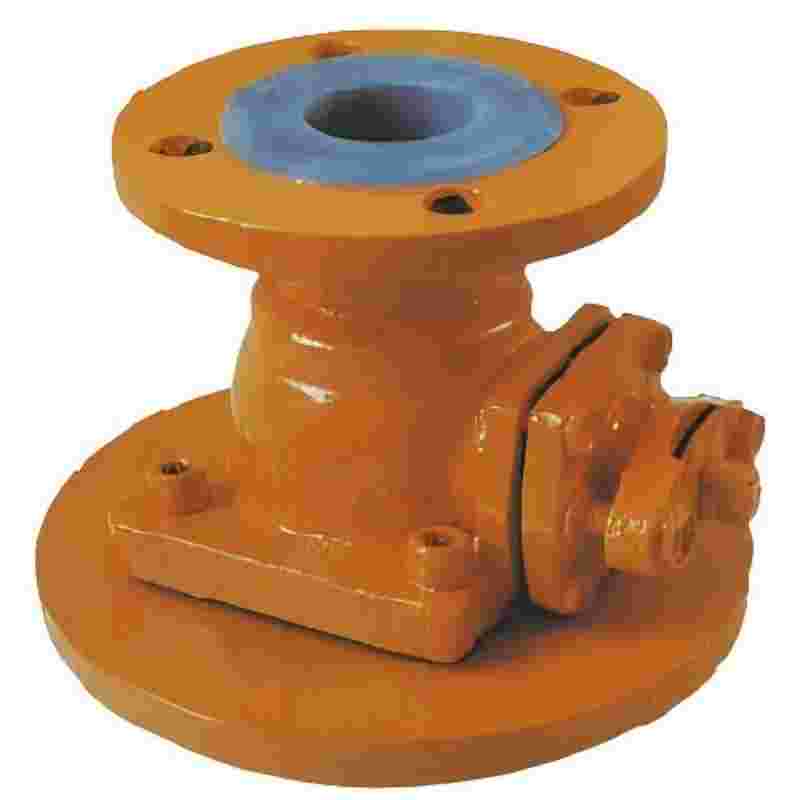

FQ41Fs fluorine-lined discharge ball valve,fluorine-lined discharge ball valve,discharge ball valve,ball valve

This series of products is an extension of fluorine-lined ball valves, designed for the opening and closing control of various highly corrosive media. The flanges at both ends of the valve are of different sizes, with one end being a standard flange and the other end being a flange that matches the discharge hole at the bottom of the reaction vessel. They can be conveniently connected to the bottom of the reaction vessel. Its structural form is floating through type, and the connection form is flange. The valve shell is made of carbon steel lined with fluoroplastic, and the valve ball is manufactured by the process of an integrated metal insert with the valve stem wrapped with fluoroplastic. It features good corrosion resistance and sealing performance, flexible opening and closing, fast speed, beautiful appearance, high strength and long service life. It is the most widely used corrosion-resistant valve in modern chemical process flows.

The application of fluorine-lined discharge ball valves

The Q41F-F series fluorine-lined discharge ball valve adopts fluoroplastic lining technology. The valve body is precisely cast by investment casting, featuring high strength and smooth appearance. All the flow-through components in contact with the liquid are made of fluoroplastic. Therefore, it can be used for a long time in pipelines and lines with any concentration of corrosive substances within the temperature range of -50℃ to 180℃.

The working principle of fluorine-lined discharge ball valve

The working principle of the Q41F-F series fluorine-lined discharge valve is to make the valve unobstructed or closed by rotating the valve disc. The valve disc and the inner side of the valve body are all made by fluoroplastic lining process. It has the advantages of easy opening and closing, small volume, reliable sealing, simple structure, convenient maintenance and wide application range.

Design features of fluorine-lined discharge ball valve

The basic series of the discharge ball valve is type Q41F. Besides the common features of ball valves such as low fluid resistance, fast opening and closing speed, and simple structure, it also has the following advantages:

The ball valve with a fluoroplastic lining layer has extremely high chemical stability and can be applied to any strongly corrosive chemical medium.

2. It adopts a full-bore and floating ball structure, allowing the valve to close without leakage throughout the entire pressure range, which is more convenient for ball sweeping and pipeline maintenance in the pipeline system.

3. The ball of the opening and closing part and the valve stem are cast (forged) as one piece, eliminating the possibility of the valve stem impact on the pressure-bearing part due to pressure changes, fundamentally ensuring safety during use

The Q41F-F series fluorine-lined discharge ball valve adopts fluoroplastic lining technology. The valve body is precisely cast by investment casting, featuring high strength and smooth appearance. All the flow-through components in contact with the liquid are made of fluoroplastic. Therefore, it can be used for a long time in pipelines and lines with any concentration of corrosive substances within the temperature range of -50℃ to 180℃.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
