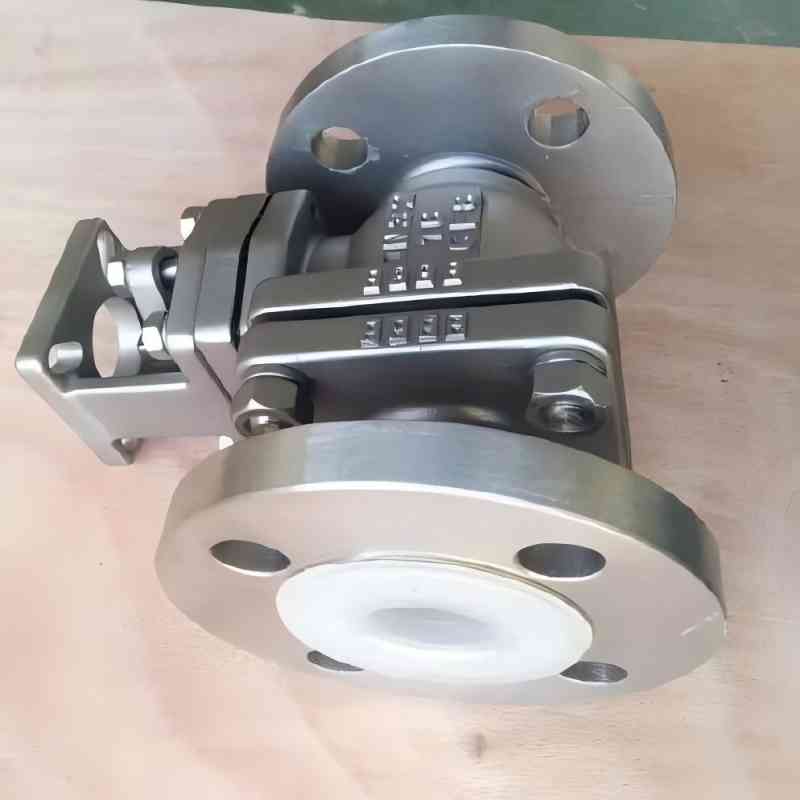

Pneumatic stainless steel fluorine-lined ball valve, flange connection, diameter DN15-DN200 (two-piece structure), DN250-DN400 (three-piece structure), pressure PN10, PN16, valve body and ball inner lining PFA or F46, material SS304, SS316, SS304L, SS316L stainless steel.

The pneumatic stainless steel fluorine-lined ball valve features a high-pressure injection molding process for both the inner cavity and the ball body. It is lined with corrosion-resistant and aging-resistant F46 or PFA, ensuring reliable corrosion resistance and sealing performance. Fluorine-lined ball valves are widely used in industrial sectors such as water treatment, chemical engineering, petroleum, metallurgy, and medicine. They are used to regulate or cut off corrosive water, acids, alkalis and other strong corrosive media during the production process, and have obvious application effects in the process control of water treatment.

The fluorine-lined ball valve with F46 and PFA lining layers has extremely high chemical stability and can be applied to any strong corrosive properties except for "molten alkali metals and elemental fluorine".

2. The fluorine-lined ball valve adopts a full-bore and floating ball structure. The valve can be closed without leakage throughout the entire pressure range, which is more convenient for ball passage, line sweeping and pipeline maintenance in the pipeline system.

3. The ball of the opening and closing part and the valve stem are integrally formed by casting or forging, eliminating the possibility of the valve stem being pushed out of the pressure-bearing part due to pressure changes, fundamentally ensuring the safety of use in the project.

4. The fluorine-lined ball valve has a compact and reasonable structure. The inner cavity space of the valve body is small, which reduces the retention of the medium. In addition, the special molding process ensures good density of the sealing surface. Combined with the herringbone ring-shaped PTFE packing, the valve achieves zero leakage.

Fluorine-lined ball valves are widely used in industrial sectors such as water treatment, chemical engineering, petroleum, metallurgy, and medicine. They are used to regulate or cut off corrosive water, acids, alkalis and other strong corrosive media during the production process, and have obvious application effects in the process control of water treatment.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
