رمز المنتج : VF--CF-C17-CU
Product models: Q44F, Q45F46, Q645F46, Q945PFA;
Nominal diameter: DN32-DN250
Nominal pressure: PN1.6MPa, PN1.0MPA, 150LB;
Flange standards: National standard GB/T9119-2010, Ministry of Chemical Industry HG/T20592-2009, American standard ANS B1S52212, ANSI B16.5a, Japanese standard JIS B2212;

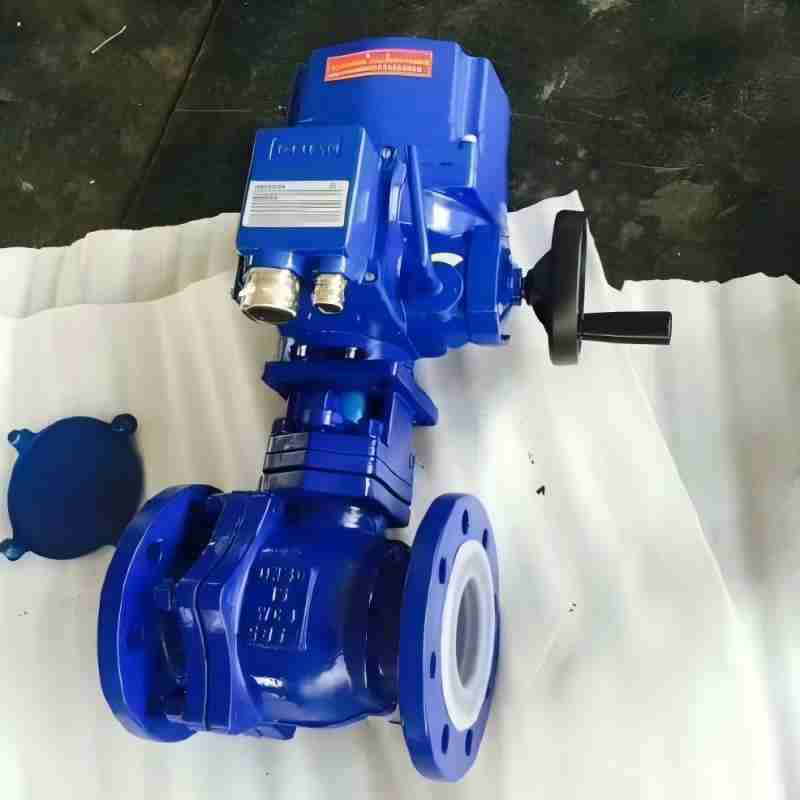

Operation mode: Pneumatic, electric, manual.
Valve body material: CF8, CF8M, CF3, CF3M;
Sphere material: SS304, SS316, SS304L, SS316L stainless steel;
Lining material: F46, PFA
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| المنتج | رمز المنتج | النقاء | الحجم | تواصل معنا |
Q45F46, Q44PFA- Stainless steel three-way fluorine-lined ball valves, SS304, SS316 stainless steel, T type, L type, valve body and ball lined with F46, lined with PFA, used in chemical, water treatment and other industries, diameter DN32-DN250, pressure PN1.0-1.6MPa, American standard 150LB.

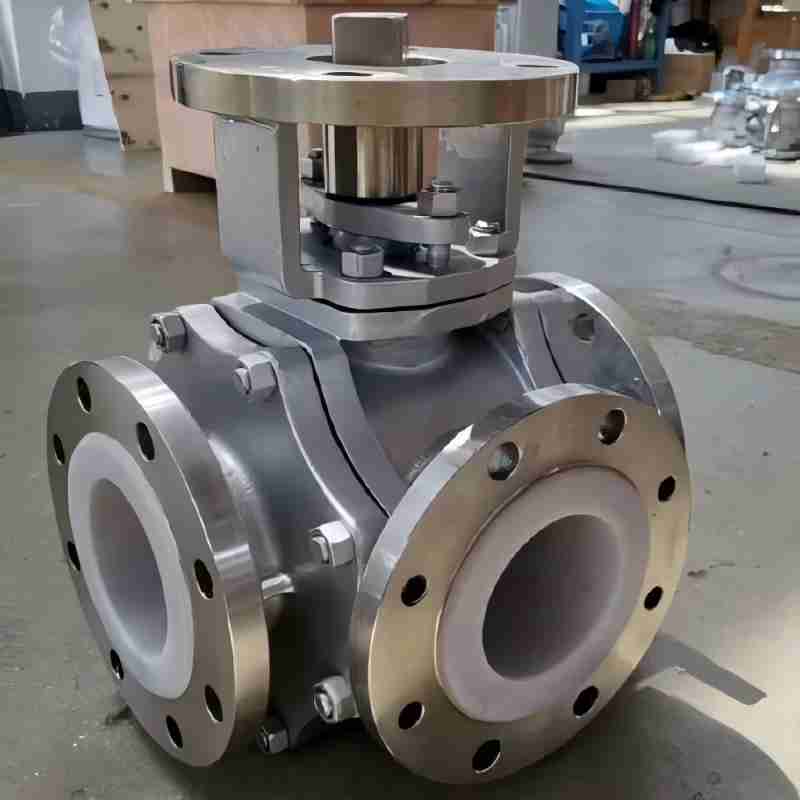

Q45F46, Q44PFA- Stainless steel three-way fluorine-lined ball valves, T-shaped structure, the ball has three holes corresponding to the three ports of the valve body, connecting three pipes to achieve functions such as merging, diverting, and reversing. L-shaped structure, the sphere has only two holes.
Design features:
It adopts a full-bore and floating ball structure, featuring low flow resistance, which is convenient for ball sweeping and pipeline maintenance in the pipeline system.
2. The ball of the opening and closing part and the valve stem are integrally formed by casting or forging, eliminating the possibility of the valve stem being pushed out of the pressure-bearing part due to pressure changes, fundamentally ensuring the safety of use in the project.
3. The inner cavity space of the valve body is small, which reduces the retention of the medium. In addition, the special molding process ensures good density of the sealing surface. Combined with the herringbone ring-shaped PTFE packing, the valve achieves zero leakage.
It adopts a full-bore and floating ball structure, with low flow resistance, which is convenient for ball sweeping and pipeline maintenance in the pipeline system.
