رمز المنتج : VF--DCCC-DC30-CU
Main technical parameters:
Principle structure: Direct-acting PTFE piston type
Ambient temperature: -10 to 50℃
Control mode: Normally closed
Fluid range: hydrochloric acid, sulfuric acid, solvents, chemical reagents and other acidic and alkaline liquids and gases.
Fluid temperature: -50℃ to 150℃
Standard voltage: AC220V, DC24V (Other voltages can be customized)
Valve body material: PTFE (Polytetrafluoroethylene, commonly known as "Plastic King")
Valve core material: PTFE (Polytetrafluoroethylene, commonly known as "Plastic King")
Electrical connection: Junction box (2 power terminals without positive or negative poles, 1 grounding terminal)
Protection grade: International standard IP54
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| المنتج | رمز المنتج | النقاء | الحجم | تواصل معنا |

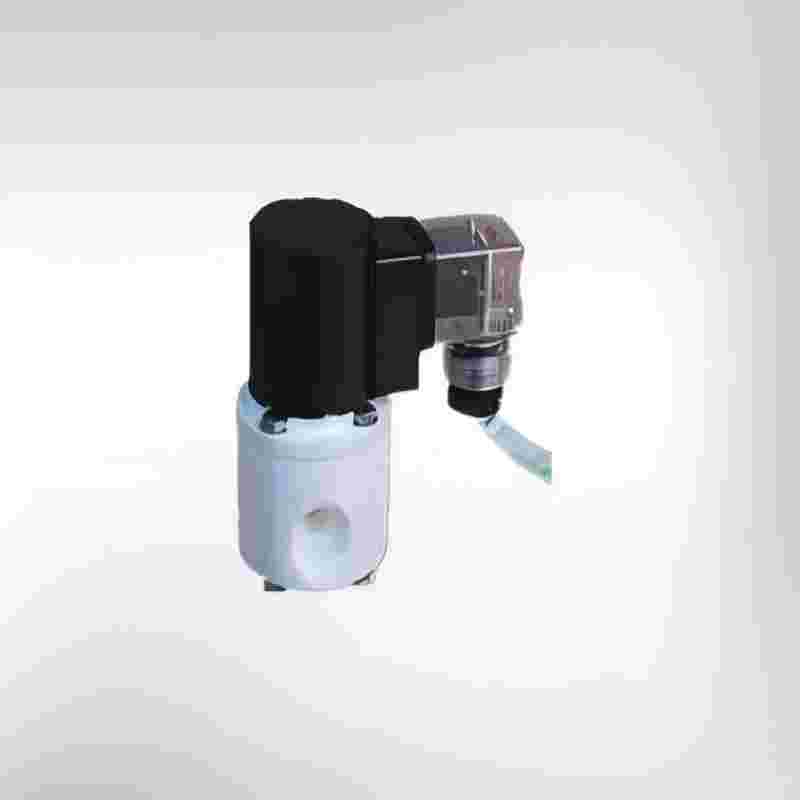

Product Name: PTFE Piston Solenoid Valve
Product features: Patented technology, unique materials, PTFE piston acid and alkali resistant, zero-pressure start-up performance stable, good sealing, ultra-long service life, PTFE piston solenoid valve, piston solenoid valve, PTFE solenoid valve
Application scope:
In automatic control systems for strong acids and strong alkalis in petrochemical, power equipment, pharmaceutical machinery, chemical reagent factories, chemical analysis instruments, sewage treatment equipment, scientific research instruments, etc
Application scope:
In automatic control systems for strong acids and strong alkalis in petrochemical, power equipment, pharmaceutical machinery, chemical reagent factories, chemical analysis instruments, sewage treatment equipment, scientific research instruments, etc
