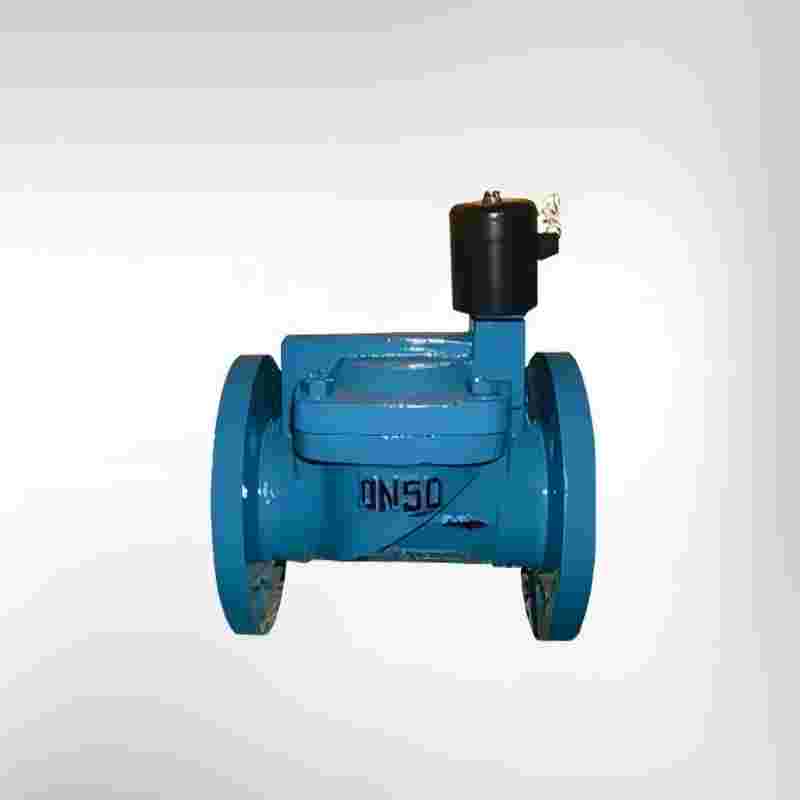

Water solenoid valve, solenoid valve

This valve is a pilot-operated solenoid valve with secondary opening. Its structure mainly consists of a pilot valve and a main valve. The main valve adopts a rubber sealing structure. When in normal position, the movable iron core seals the pilot valve port, the pressure inside the valve cavity is balanced, and the main valve port is closed. When the coil is energized, an electromagnetic force is generated to attract the movable iron core. The medium in the main valve cavity leaks out of the valve port through self-conduction, resulting in a pressure difference. The diaphragm or valve cup is quickly lifted, the main valve port opens, and the valve then enters a passage. When the coil is de-energized, the magnetic field disappears, the movable iron core returns to its original position, and the pilot valve port is closed. After the pressure in the pilot valve and the main valve cavity is balanced, the valve is in a closed state again.

This valve is selected for use with water or liquid as the working medium and can automatically control or remotely control the on-off of pipelines carrying water, oil, liquid and other working media. As this valve adopts rubber sealing, the cleanliness of the working medium is greatly reduced. It has the advantages of rapid opening and closing and high reliability.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
